In 4-20mA standard format with 3-wire connection, compatible with any system that include this type of inputs.
They are available with two types of housing:

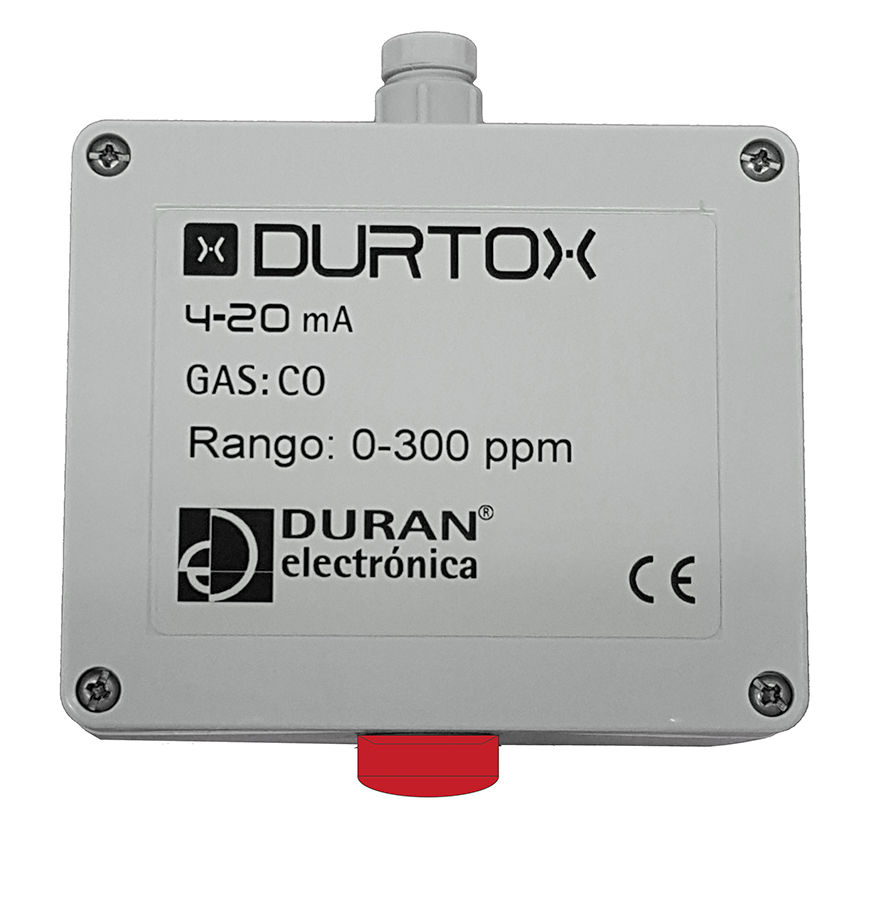

DURTOX – plastic housing IP65
Two versions are manufactured, without alarm output or with two voltage-free relay outputs.
Available for the following gases: CO, H2, NO, O2, O3, Cl2, CH2O, H2S, HCl, NH3, NO2 and SO2.
For tunnel applications, usually CO and NO2 detectors are used, and to a lesser extent O2 detectors.

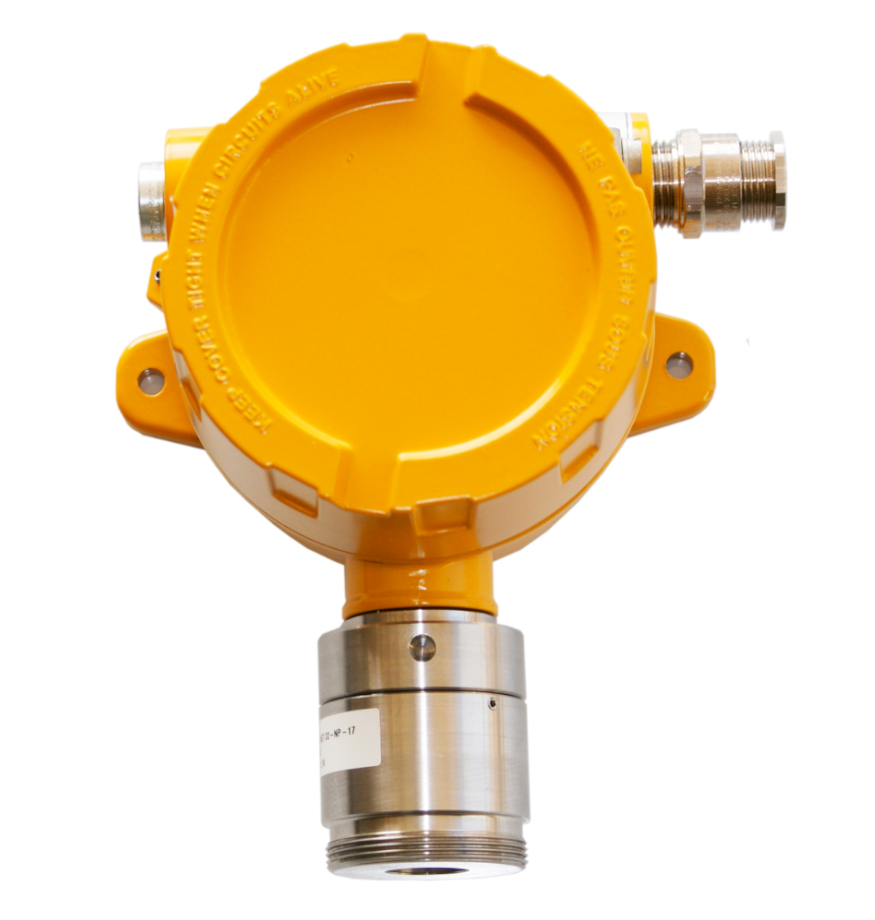

DURTOX-X – ATEX exproof housing (LOM 10ATEX2076 certif.)
Available for detection of the following gases: CO, H2, NO, O2, Cl2, H2S, HCl, NH3, NO2 and SO2.
For tunnel applications, usually CO and NO2 detectors are used, and to a lesser extent O2 detectors.
For use in explosive gas atmospheres and with a high level of protection. There is a version of the detector available, also ATEX certified, with a high level of protection and destined for use in explosive dust atmospheres.
DURTOX-X is provided with a 12bit microprocessor that allows total and precise control over sensor status and electronics. It also provides thermal compensation that allows a correct response from each of the electrochemical sensors when faced with temperature variations, except for O2 that due to its different behavior does not require such a feature. Also included: self-testing hardware, digital filter based on variable samplings of the sensors average values and auto-zero automatic exact adjustment.
