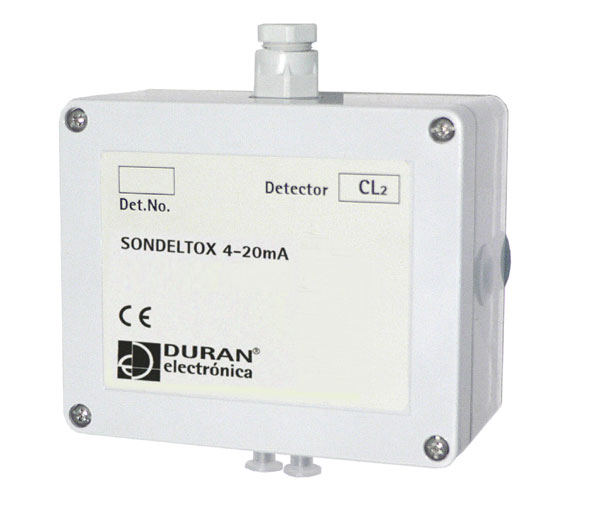

Sondeltox
4-20mA detector with 2-wire connection provided with electrochemical sensors for the detection of toxic gases and Oxygen, compatible with any system with standard 4-20mA inputs.
Compatible with DURGAS & EUROSONDELCO (using interface).
Available gases: carbon monoxide (CO), Oxygen (O2), Nitrogen dioxide (NO2), Hydrogen sulfide (H2S), Sulfur dioxide (SO2), Nitrogen monoxide (NO), Chlorine (Cl2) and Hydrogen (H2). For other gases, please ask.
- Various measuring ranges available.
- For the exproof version, visit DURTOX-X.
- Power supply: 10V to 35V DC.
- Consumption: 21mA max.
- Protection grade: IP65.Working temperature: –20ºC to +50ºC.
- 100% linear throughout full range.
- Useful life: 2 years in air (3 years in air for CO).
- Dimensions (mm): 120 x 150 x 63.
- Weight (gr): 325 approx.
All detectors manufactured by DURAN ELECTRONICA have been calibrated in our laboratories and do not need to be calibrated on-site.
