Atex junction box

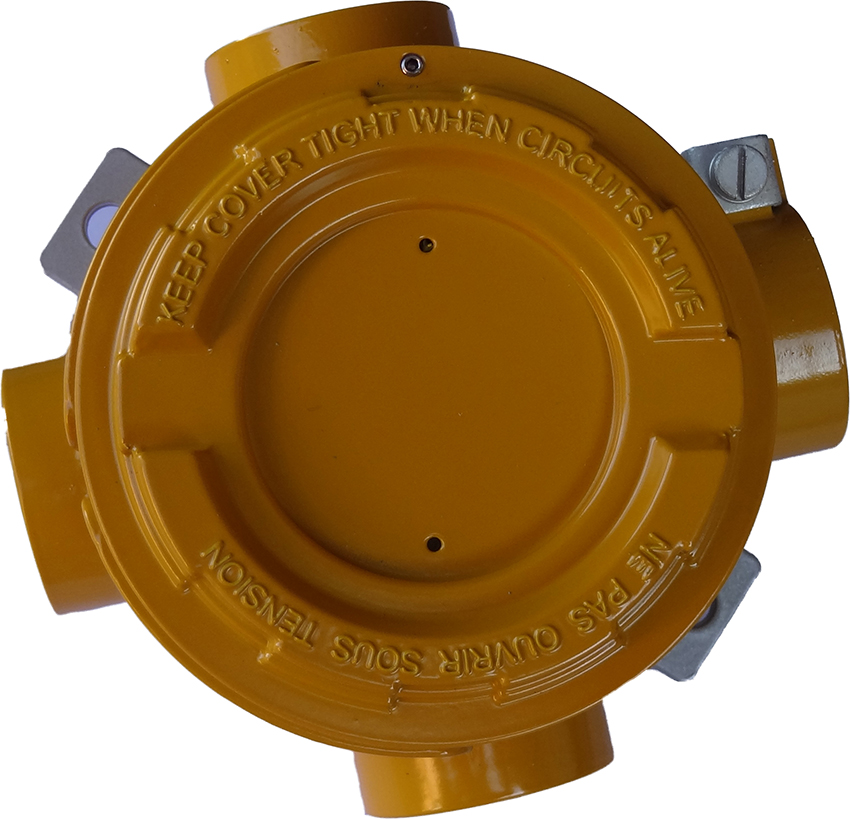

Exproof junction box made out of copper-free aluminium, which confers it with great mechanical resistance. Includes a round threaded cover, stainless steel screws and clamping bar.

This box is designed to function as a derivation or connection box in environments in which the formation of explosive atmospheres due to gases, vapours, fogs or suspended dust is probable and they ensure a high protection level (group II, category 2 of the ATEX directive).

Must be used in areas with an explosion risk classified as:

Zone 1 (gases) or zone 21 (dusts).
Zone 2 (gases) or zone 22 (dusts).

FTZU 05 ATEX 0262 U certified, with four threaded cable entries.

We also have available cable glands and plugs certified for explosive gas and dust.

Documentation DATASHEET
